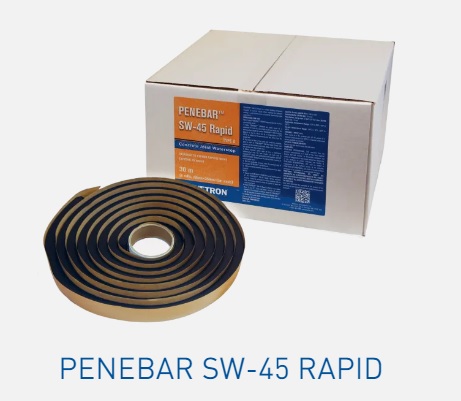

واتراستاپ PENEBAR™ SW-45

DATA SHEET

DESCRIPTION PENEBAR™ SW-45 Rapid is a unique sealing compound designed to expand rapidly when exposed to moisture making it a self-healing joint material for construction joint applications. APPLICATIONS Typical applications for PENEBAR™ SW-45 Rapid include: Building foundations Slabs Retaining walls Storage tanks Other similar non-moving cold construction joints PHYSICAL PROPERTIES

Colour: Black

Specific gravity: (ASTM D71): 1.50 ± 0.05

 Volatile matter: (ASTM D6): 1% maximum

Penetration: 150 g cone @ 25°C ; 5 sec (ASTM D217): 40 ± 5 mm

Application

 temperature range : -20°C to 40°C

Service

temperature range : -35°C to 80°C

STANDARD Complies and meet the requirements to EU REACH Regulation (EC) No 1907/2006 Article 33(1) Obligation to provide information of safe use (see REACH requirement in report for details).

 DIRECTIONS FOR USE

How to apply PENEBAR™ SW-45 Rapid on poured-in-place construction joints:

1. Apply PENEBAR™ to the concrete structure, then cover PENEBAR with metal mesh. Then fix them with masonry nails or by other mechanical means to hold the material on surfaces. This will allow to avoid PENEBAR dispacement during concrete placing pricedures.
2. 2) Where required, splice ends to form a continuous, uninterrupted seal. For best results, cut each end at opposite 45° angles and tightly butt ends together. DO NOT OVERLAP ENDS. Gently knead the spliced ends creating an uninterrupted seal.
3. 3) Please note that PENEBAR should be placed no closer than 75mm from the outer surface of poured structure.
4. 4) Follow standard concrete placing procedures from here onwards.



RATE OF RAPID EXPANSION

 Freshwater exposure results:

24 hours 140% expansion Visible signs of cracking along edges of specimen.

48 hours

175% expansion Splitting along sides of specimen. Both ends opening like a flower.

72 hours 90% expansion More pronounced splitting along sides and ends.

120 hours 210% expansion Specimen’s expansion became so great that further testing was impracticable.

Saltwater exposure results:

24 hours 107% expansion No visible sign of deterioration

48 hours 112% expansion No visible sign of deterioration

72 hours 114% expansion No visible sign of deterioration

120 hours 118% expansion No visible sign of deterioration

SPECIAL CONSIDERATIONS

➢ Always mesh and other mechanical means to ensure tight adhesion and to aid in

preventing PENEBAR™ SW-45 Rapid from moving during the concrete pour.

➢ PENEBAR™ SW-45 Rapid should be used at a minimum depth of 75 mm inside the

concrete.

➢ When used on pipes and other structural penetrations, PENEBAR™ SW-45 Rapid

should be cut to measured length and placed around the penetration with ends

butted.

➢ In all cases, PENEBAR™ SW-45 Rapid should be in direct contact with the substrate

along the entire length of the installation.

➢ PENEBAR™ SW-45 Rapid is not an expansion joint sealant and only suitable for

non-moving concrete joints.

➢ PENEBAR™ SW-45 Rapid should not be installed in standing water or on frozen or

icy surfaces.

PACKAGING

Type A is packaged 30 meters/carton (6 rolls, 19 mm × 25mm × 5 m each). Type B is packaged 24 meters/carton (6 rolls, 9 mm × 25 mm × 4 m each).

 STORAGE / SHELF LIFE

When stored in a dry enclosed area off the ground at a minimum temperature of 5°C in unopened, undamaged cartons, shelf life is unlimited.

SAFE HANDLING INFORMATION

 Keep out of reach of children. Refer to the Safety Data Sheet for additional information. WARRANTY:

 PENETRON INTERNATIONAL, LTD. warrants that the products manufactured by it shall be free from material defects and will conform to formulation standards and contain all components in their proper proportion. Should any of the products be proven defective, the liability to PENETRON INTERNATIONAL, LTD. shall be limited to replacement of the material proven to be defective and shall in no case be liable otherwise or for incidental or consequential damages. PENETRON INTERNATIONAL, LTD. MAKES NO WARRANTY AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED. User shall determine the suitability of the product for its intended use and assume all risks and liability in connection therewith.
